DC-950

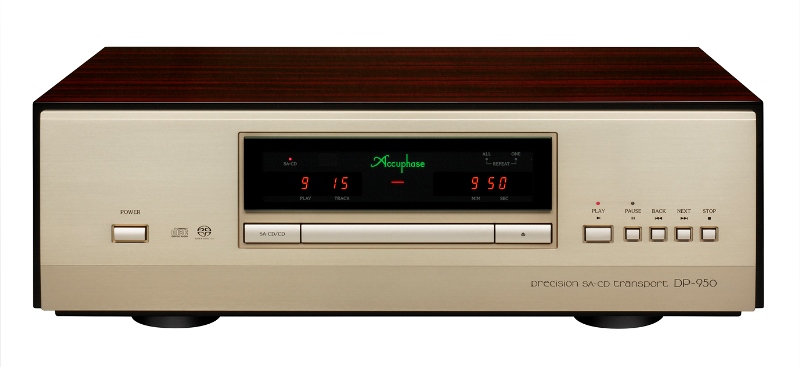

DP-950

Formats: CD, SACD, DSD (DSF)

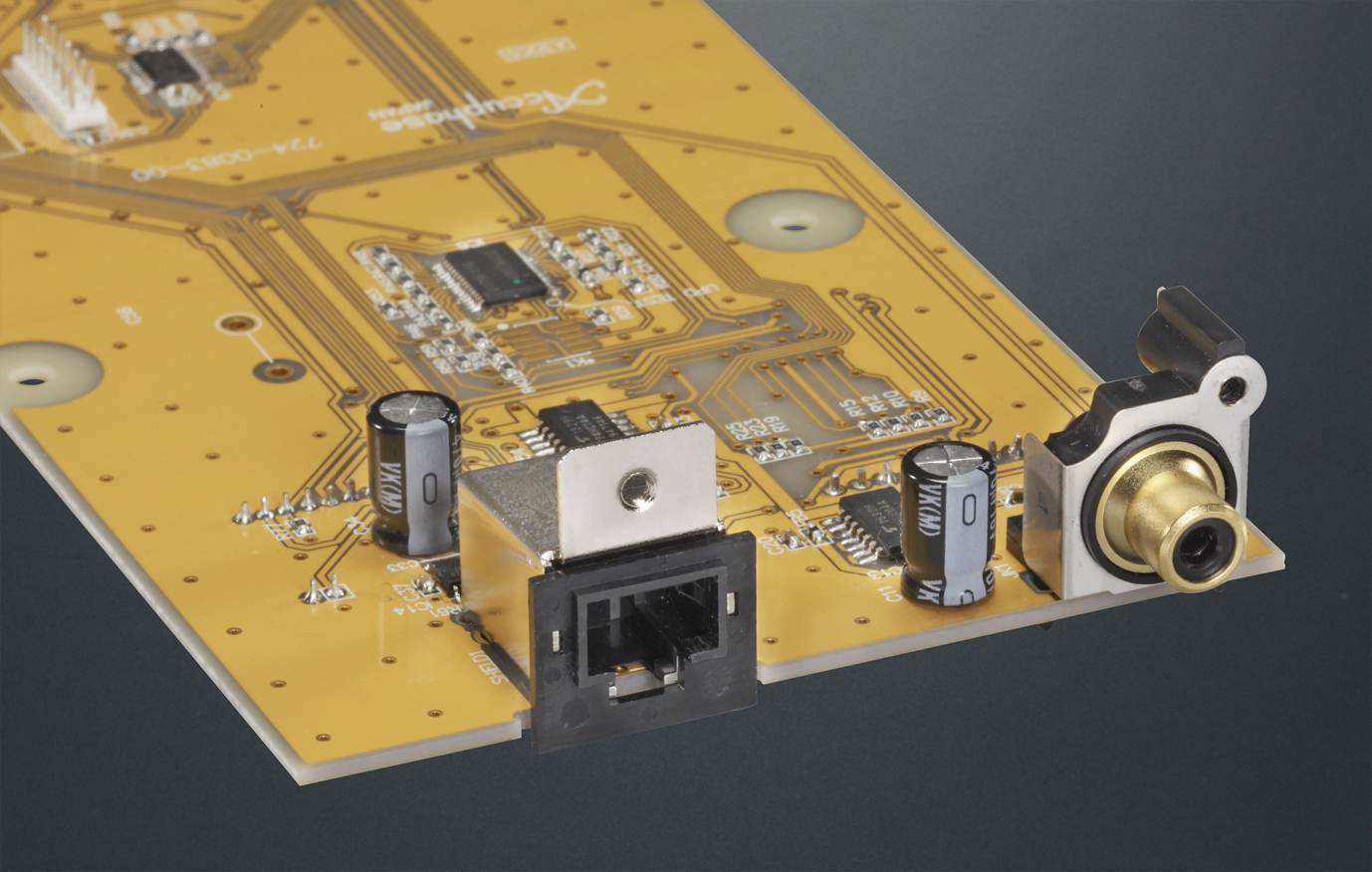

Digital outputs: HS-LINK RJ-45, (SA-CD/CD) 2,8224 MHz/1 bit DSD, coax (CD) 44,1 kHz/16 bits PCM

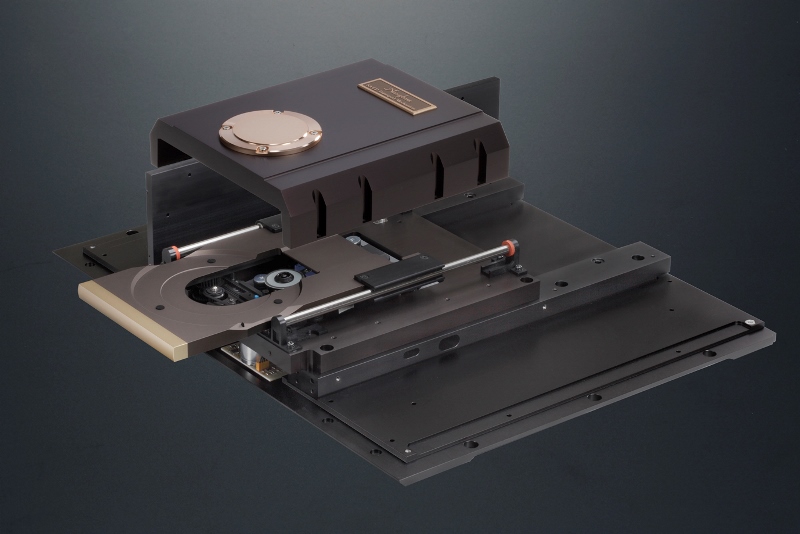

Separate, one-lens lasers for CD and SACD

Power consumption: 16 W

Dimensions (W x H x D): 477 x 156 x 394 mm

Weight: 30,6 kg

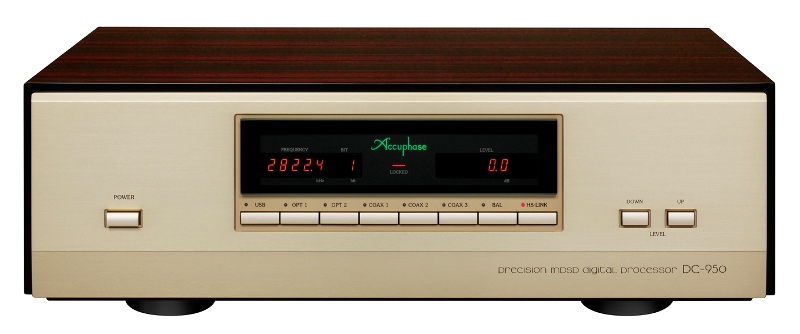

DC-950

MDS++ type D/A converter with 8 parallel circuits and support for 384 kHz (32-bit 2-channel PCM).

2 x Hyperstream DAC chips (ES9018) per each channel

Digital inputs: HS-LINK RJ-45, balanced, coax, optical, USB 2.0

Digital outputs: coax IEC 60958, optical JEITA CP-1212

Frequency range: 0.5 – 50 000Hz (+0, -3 dB)

S/N: 122dB

Dynamics: 119dB

Channel separation: 120dB

THD: 0.00045%

D/A Converters: MDSD (DSD), MDS (PCM)

Output signal: RCA 2.5V | XLR 2.5V

Power consumption: 31 W

Dimensions (W x H x D): 477 x 156 x 394mm

Weight: 24.2kg
